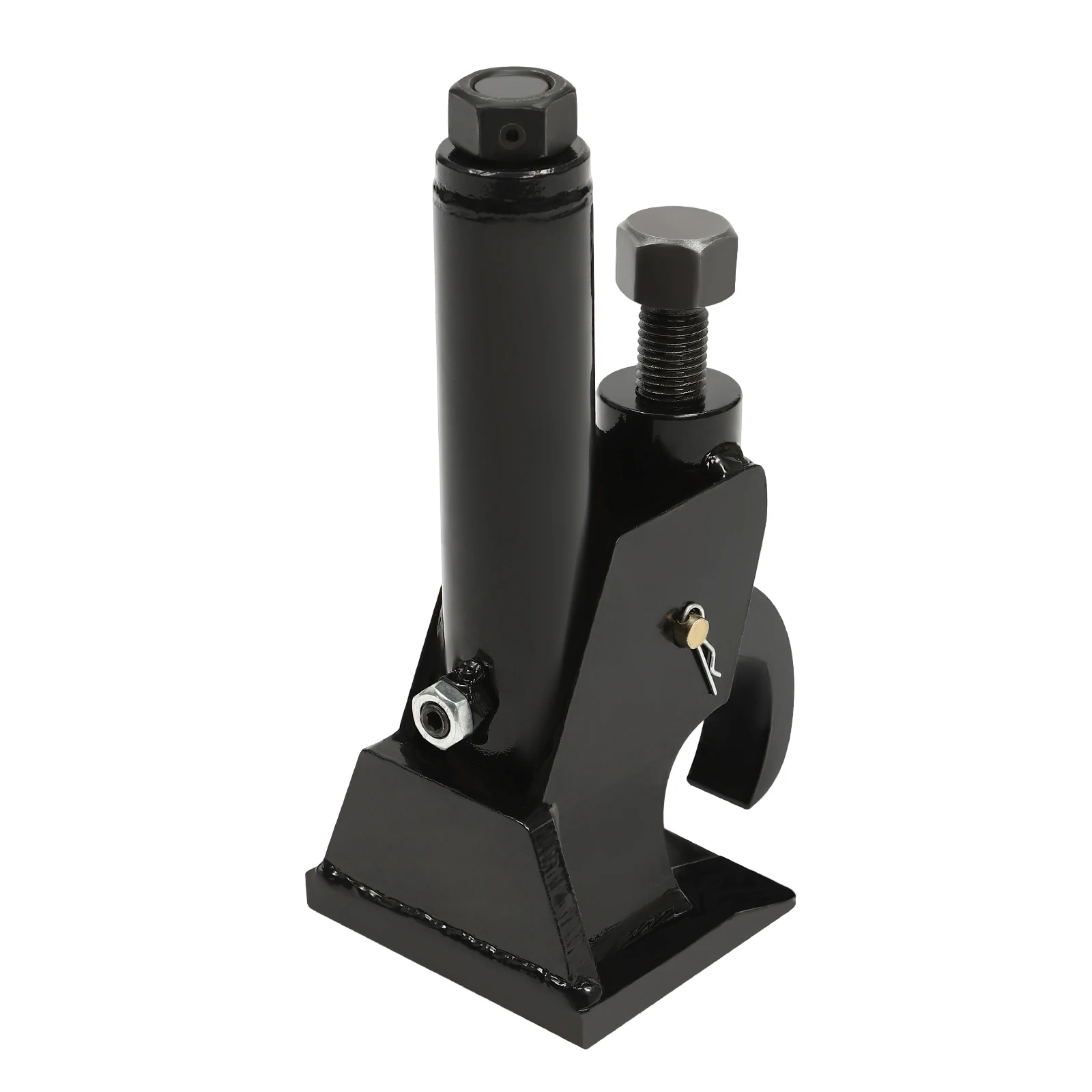

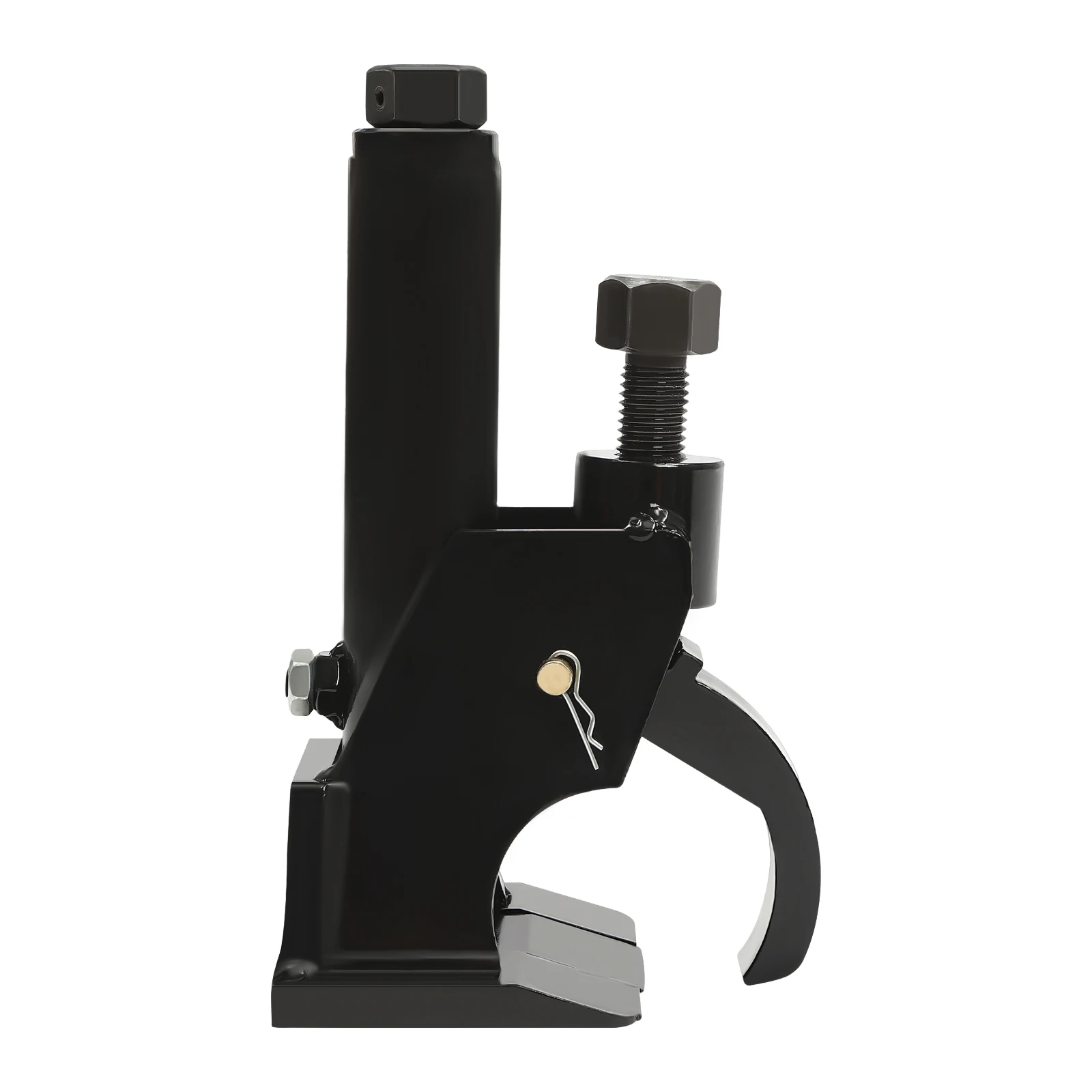

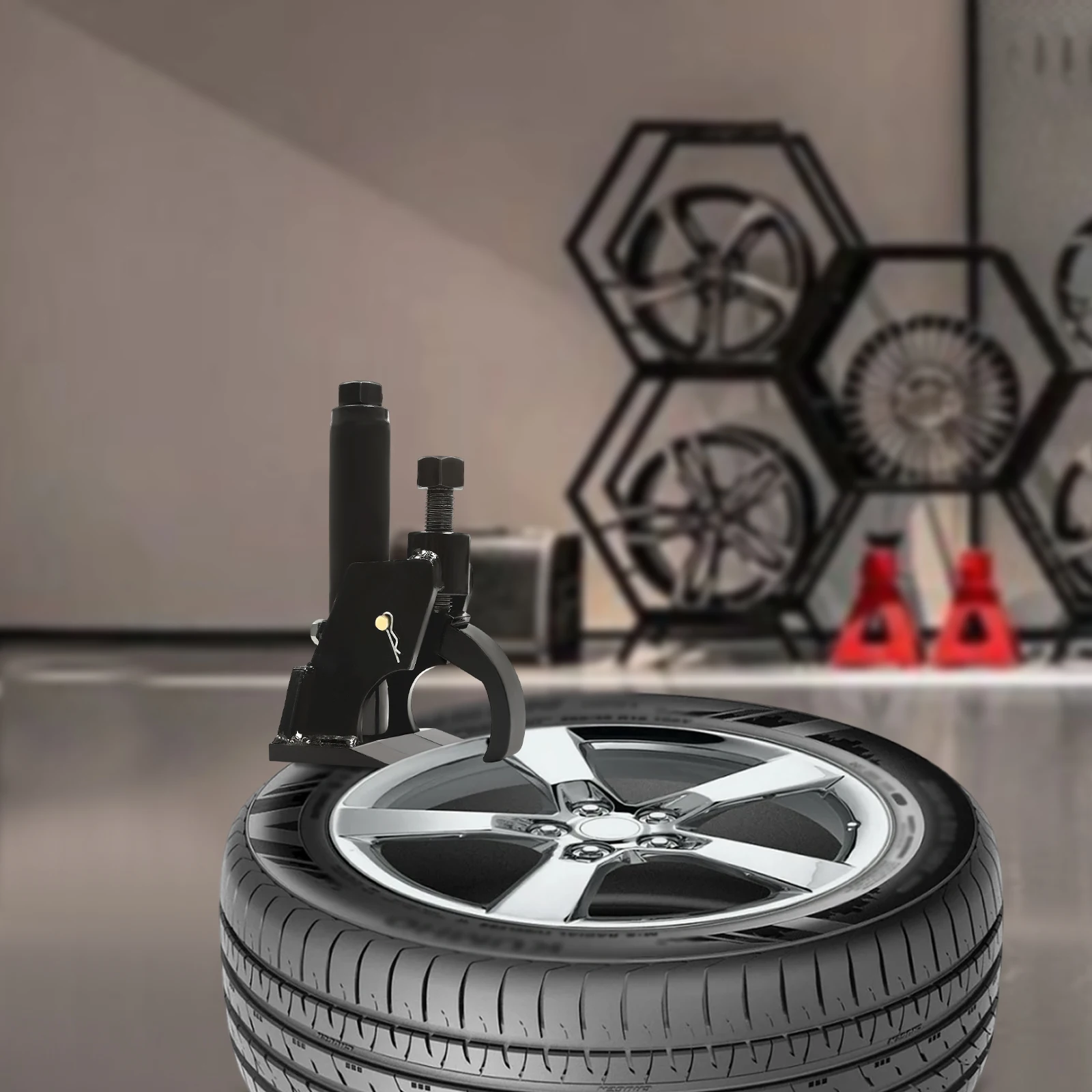

Manual Tire Bead Breaker 10"-21" Tires Changer Tool Easy-Operated Tire Repair Tool for ATV Tractors Trucks Cars

Manual Tire Bead Breaker 10"-21" Tires Changer Tool Easy-Operated Tire Repair Tool for ATV Tractors Trucks Cars

How to Use

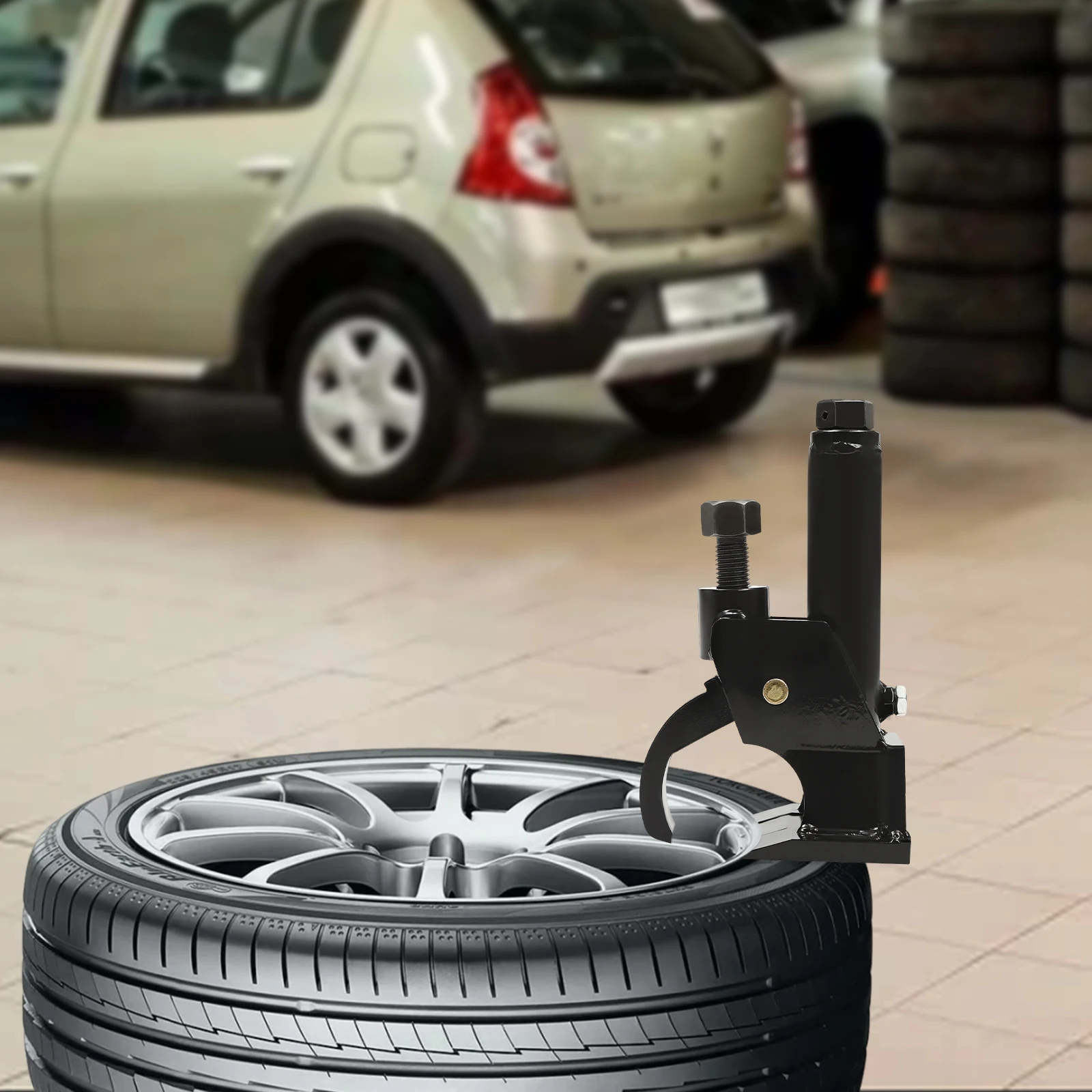

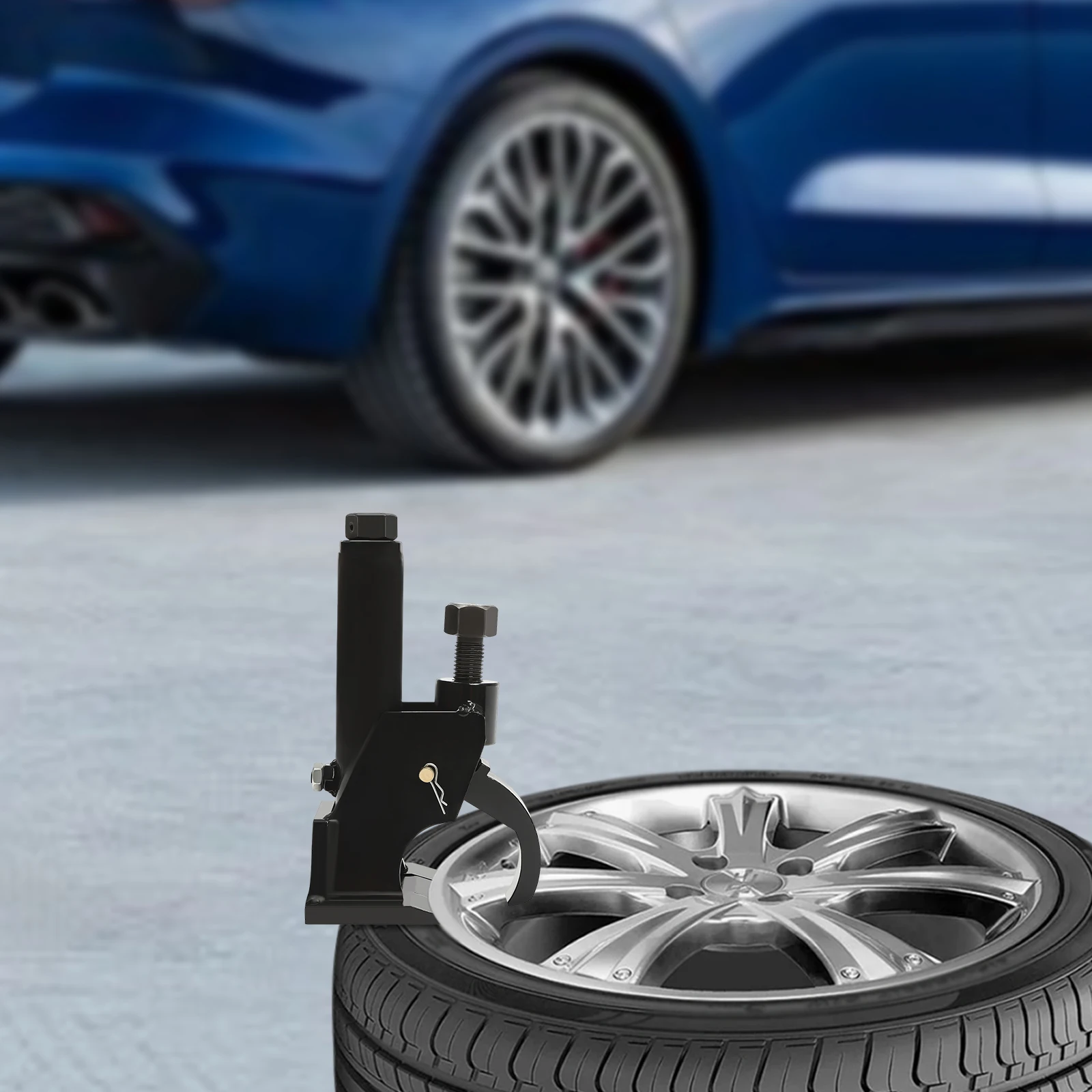

Step 1: Just place the bead breaker onto the rim, place paws and breaker foot between rim and tire bead. Sometimes the strike plate will need a tap to get into place.

Step 2: Use an air ratchet or manual hand wrench(both are not included) on the set screw to tighten the hook to the inner rim. This will pull the feet in as well in a secure manner against the rim and bead.

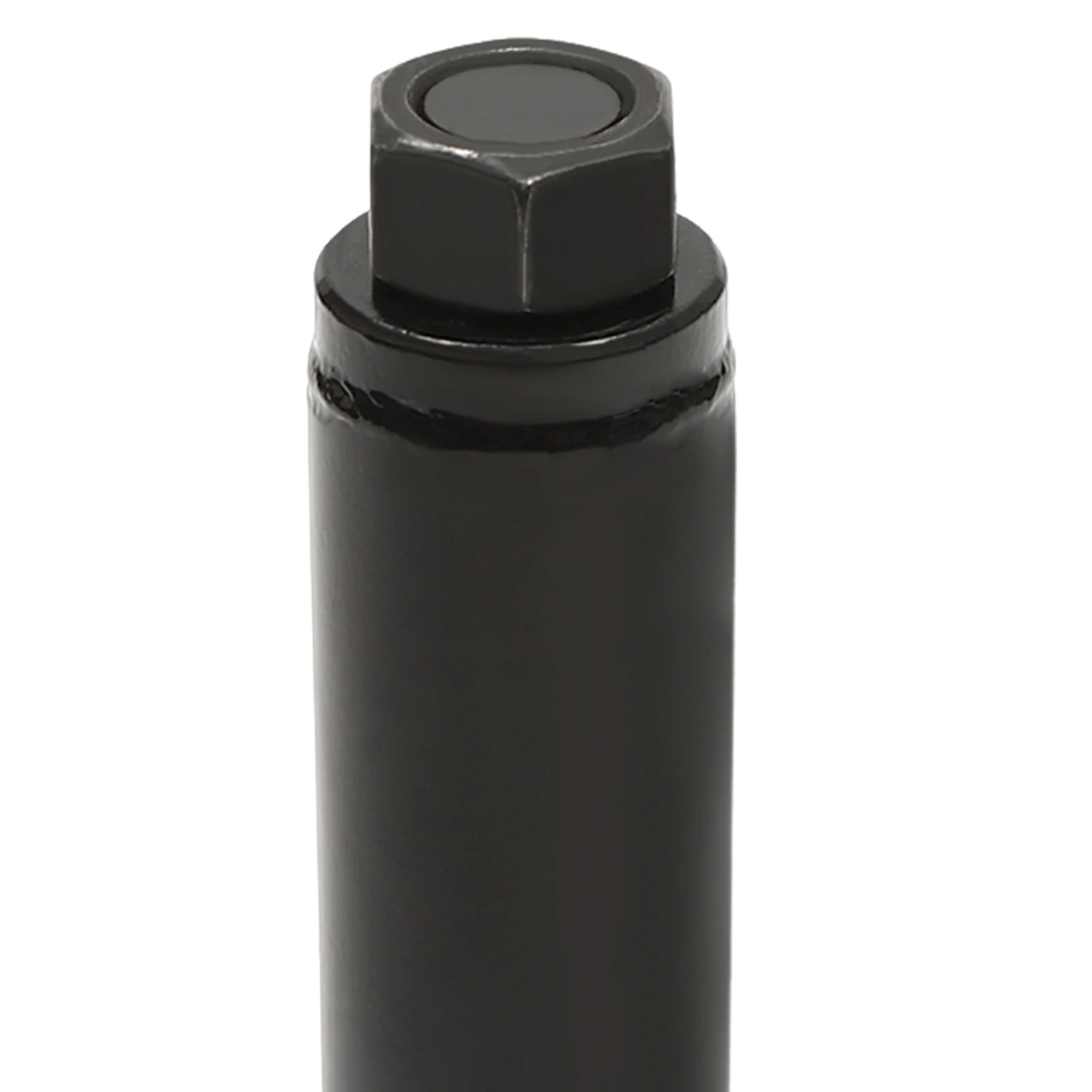

Step 3: Use an air ratchet or manual wrench(both are not included) to turn 1-1/4in the breaker nut to drive the center foot into the bead. The two outside feet will hold to the lip of the rim while you do this to break the bead.

Step 4: Once the bead is broken, retract the center foot. Loosen the set screw to release the hook from the rim.

Specification

Material: Iron

Process: Spraying

Style: Modern

Color: Black

Number of Items: 1

Assembly Required: No

Operation Mode: Manual

Applicable Tire Diamater: 25.4-53.34cm/10-21in

Package Size: 15*26*11cm/5.91*10.24*4.33in

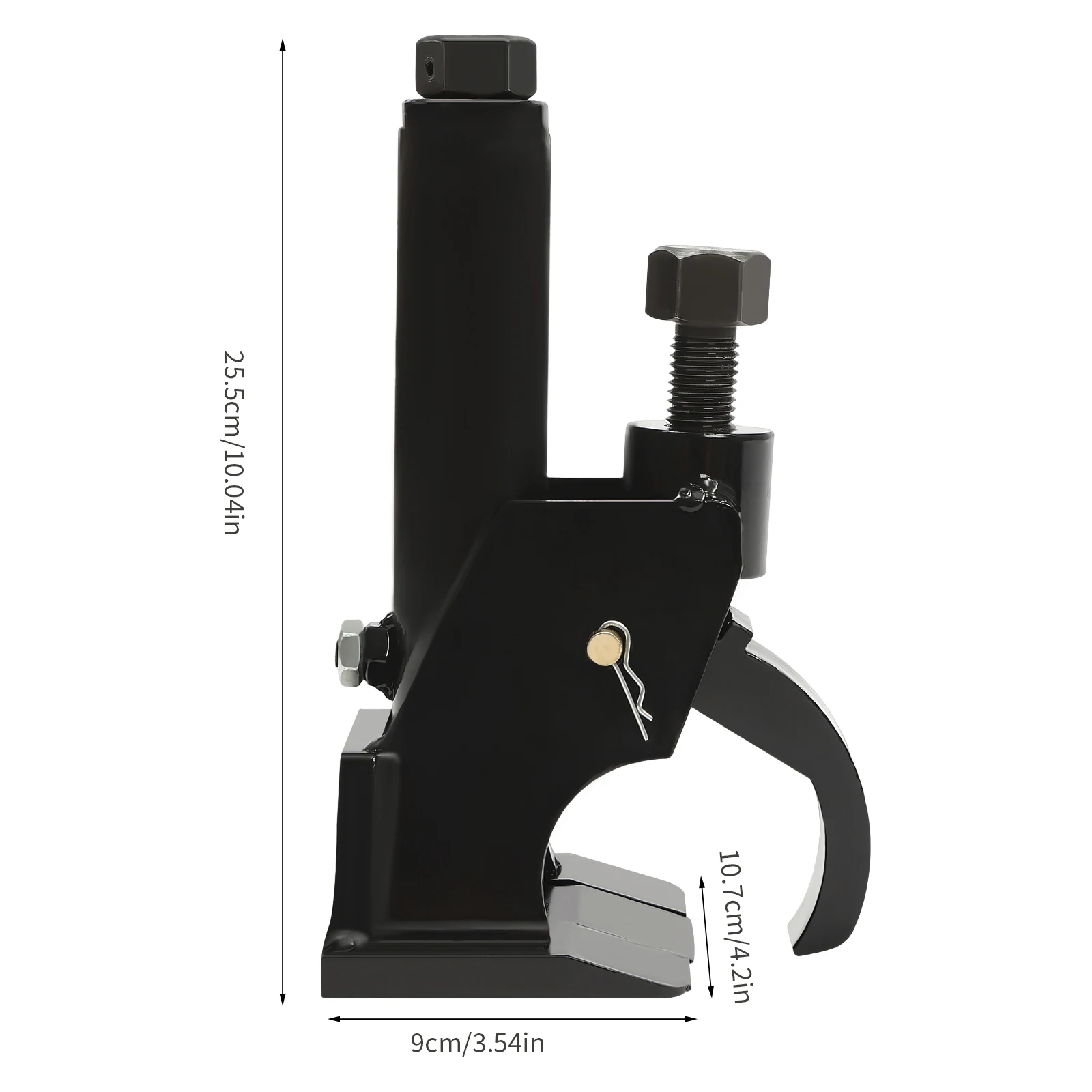

Overall Product Size: 9*10.7*25.5cm/3.54*4.21*10.04in

Gross Weight: 5.5kg/12.13 1bs

Package Included

1* Bead Breaker

Description

Do you want to loosen the tire bead easier and faster? Then try our bead breaker. It is made of high-quality iron, with strong hardness and durability, and it can be used for ATVs, golf carts, buses, trucks, semis, and so on. Its great performance makes the tire stripping work convenient and labor-saving. Its compact size and light weight allow you to take it around, and it will be your helpful assistant.

Application

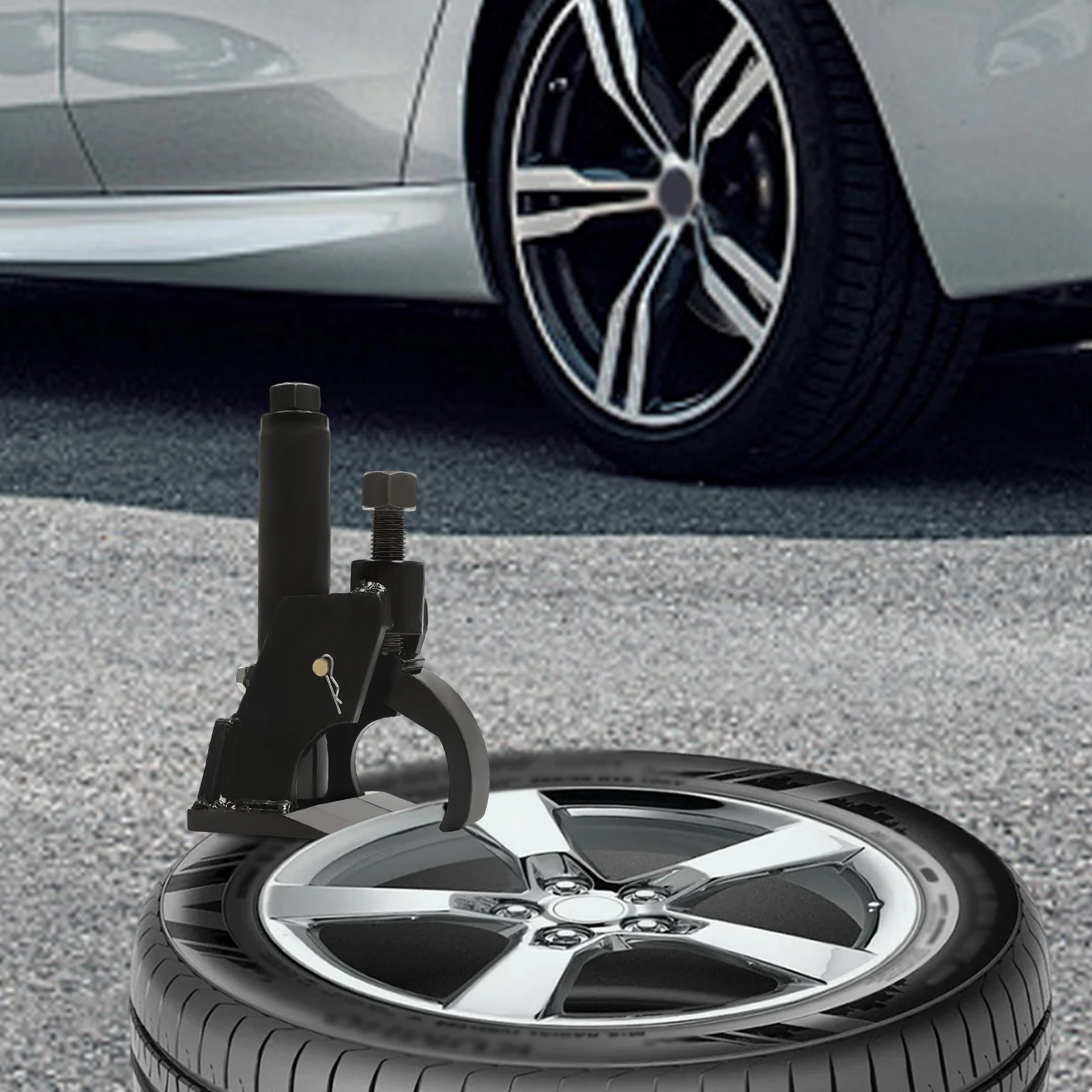

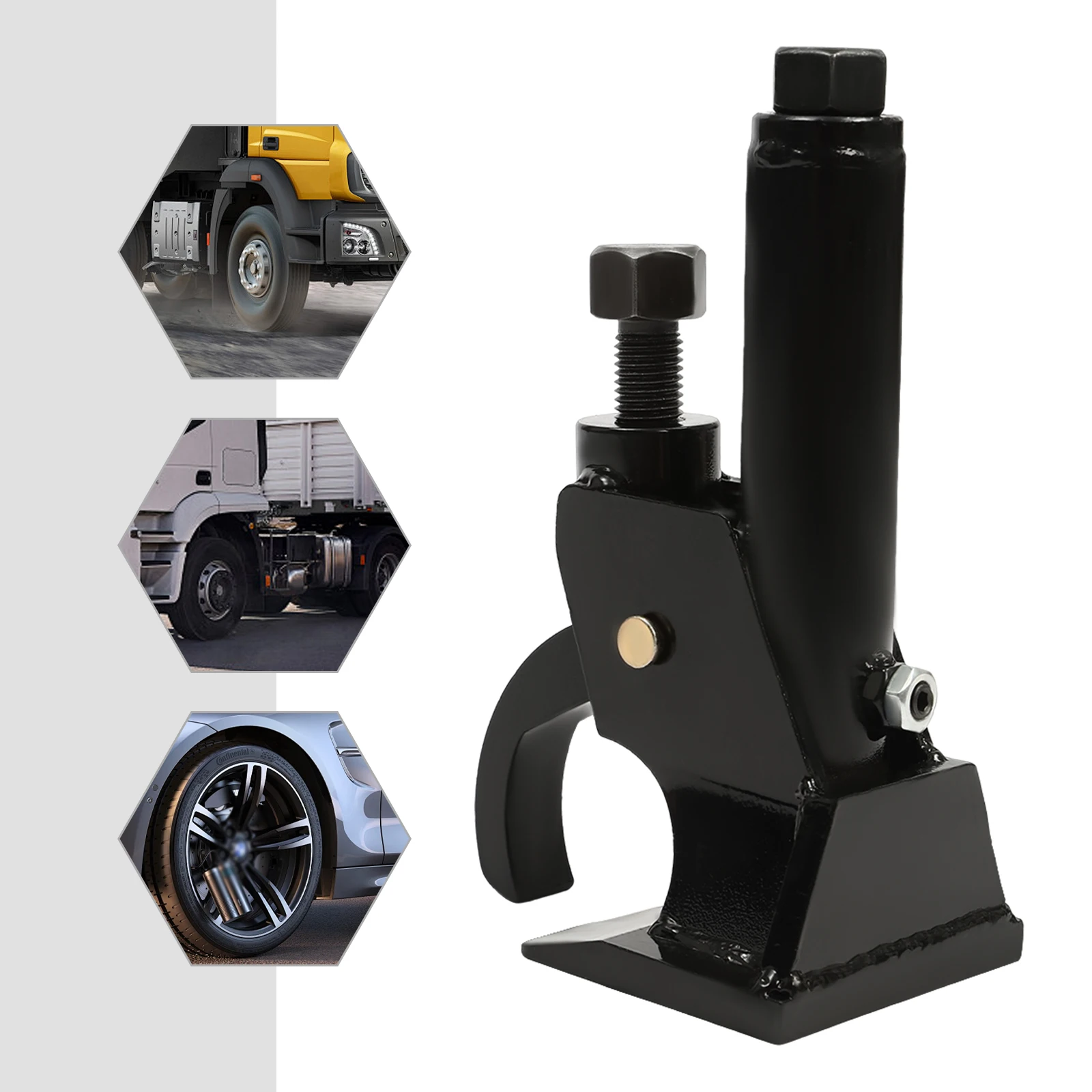

It is suitable for servicing your ATV, golf cart, bus, truck, semi, backhoe, and tractor tires

on tires up to 10-21 inches in homes, repair stores, etc.

Key Features

Build to Last: It is made of high-quality iron that adopted a spraying process, with strong hardness and good corrosion resistance, so it is not easily deformed and can be used for a long time.

Stable Construction: The whole tool is strengthened with solid brackets, which can provide more durable construction and it stands up to wear through every project, so you can use it confidently.

Excellent Performance: It can remove and replace tires by loosening the tire bead from the rim with leverage without removing the wheels, making servicing tires easier.

Compact&Portable: Its lightweight (12.13 1bs) and compact size(3.54*4.21*10.04in) allow you to take it around and it can be stored in your garage, workspace, or recreation vehicle easily.

Details

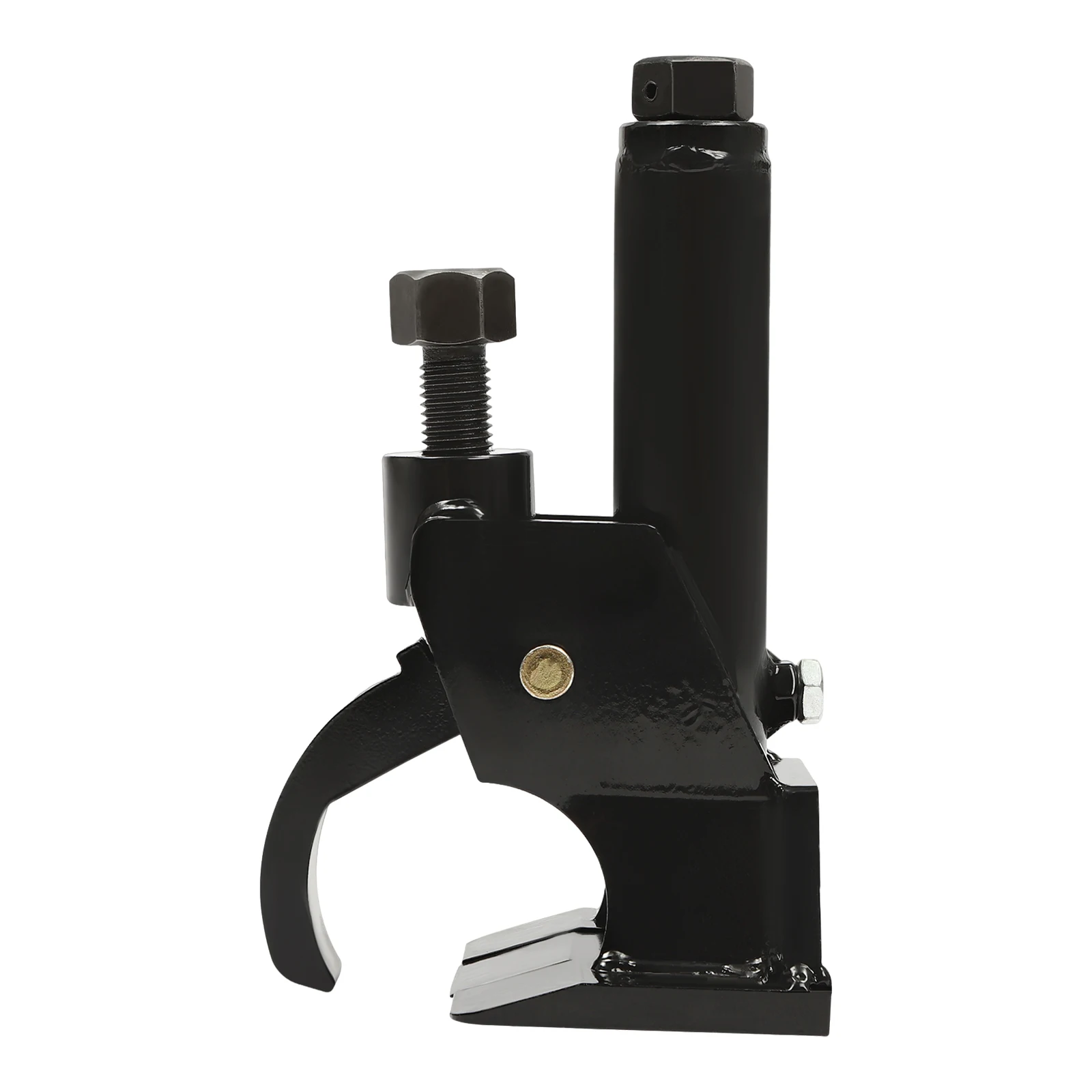

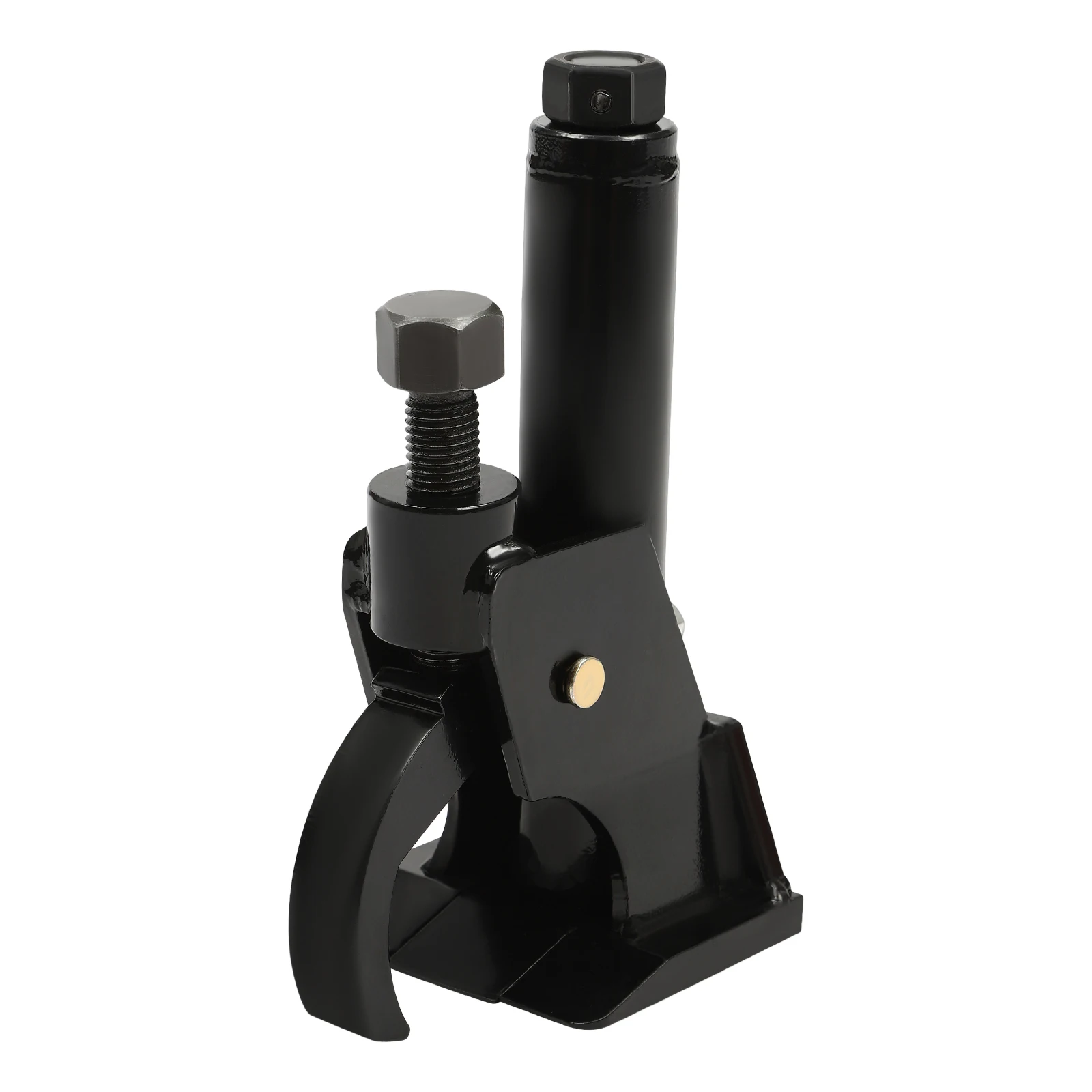

Heavy-duty Hook&Hardened Teeth: Made of premium material and with a unique hook shape, they can ensure a powerful hold on your rim.

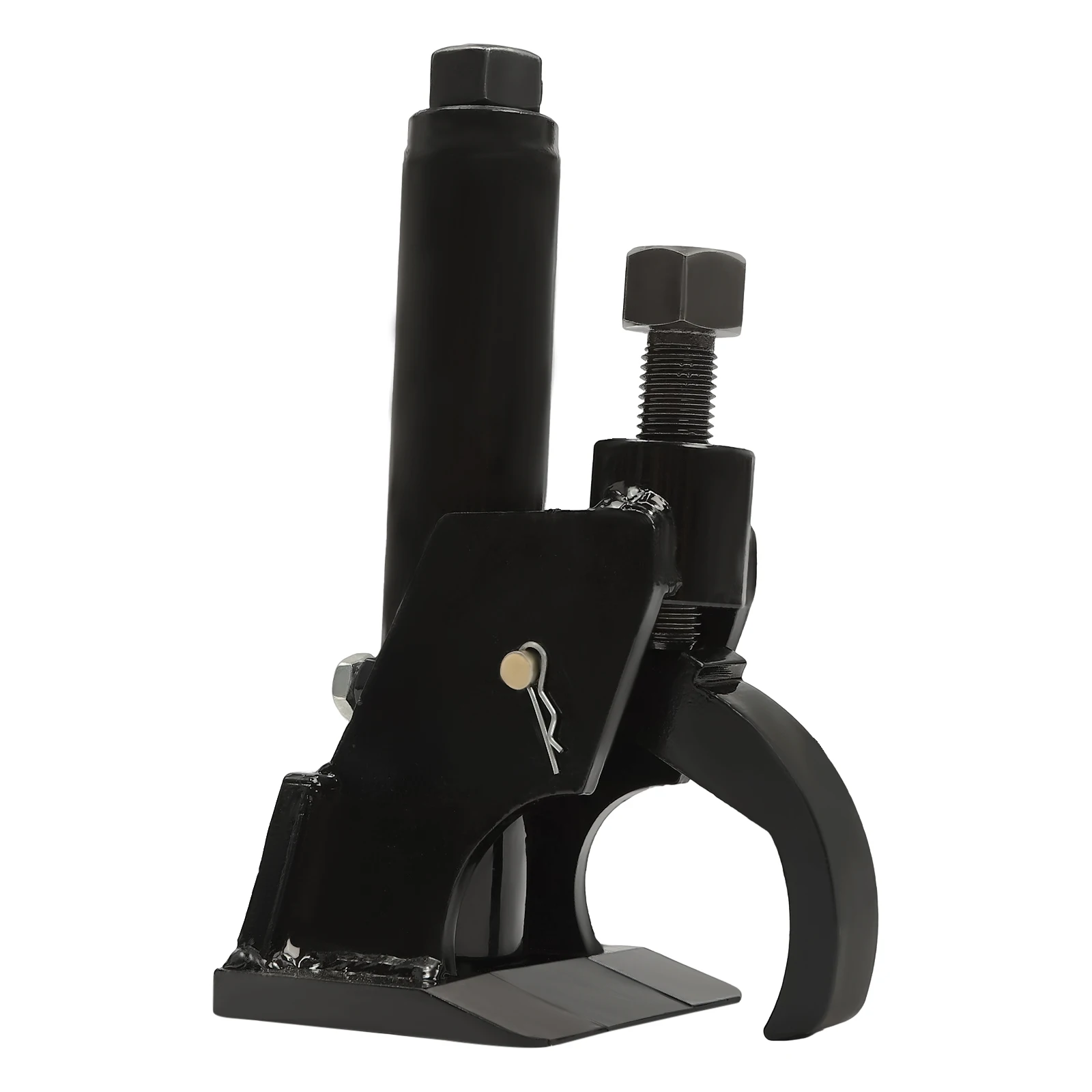

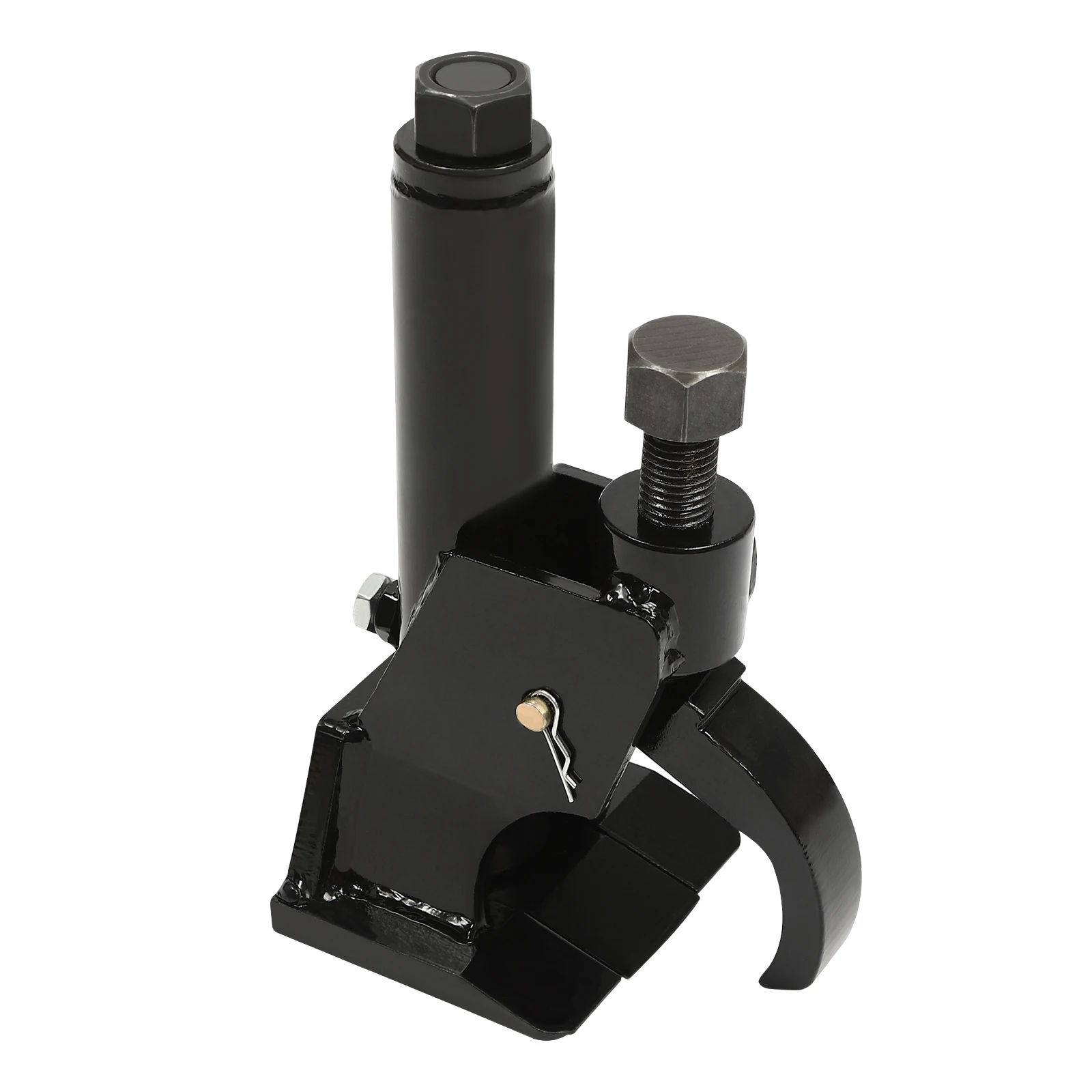

Fixing Iron Wire: It prevents the pins in the middle of the product from falling off, ensuring its firmness and safety use.

Notes

1. It needs to work with adjustable wrenches, open-end wrenches, or air wrenches(wrenches are not included). Please do not use the impact wrench as it will damage the bead breaker.

2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
